When selecting the best field termination kits for M12 connectors, I focus on rugged, waterproof designs with easy-to-install features like screw terminals and sealing gaskets. Compatibility with various cable sizes and configurations, along with durability against harsh environments, is vital for reliable connections. Whether I need shielded, angled, or straight types, I choose options built for industrial use. If you want to discover top-rated solutions tailored for your needs, keep exploring further.
Key Takeaways
- Select kits with waterproof (IP67/IP68) ratings and corrosion-resistant materials for outdoor and harsh environments.
- Opt for easy-to-install, tool-free termination methods like screw or clamp connectors for quick field assembly.
- Ensure compatibility with specific M12 configurations, pin counts, and shielding options suited to your application.
- Choose rugged, sealed designs with vibration resistance features for reliable connections in industrial settings.
- Prioritize kits with durable construction and sealing features to minimize maintenance and ensure long-term performance.

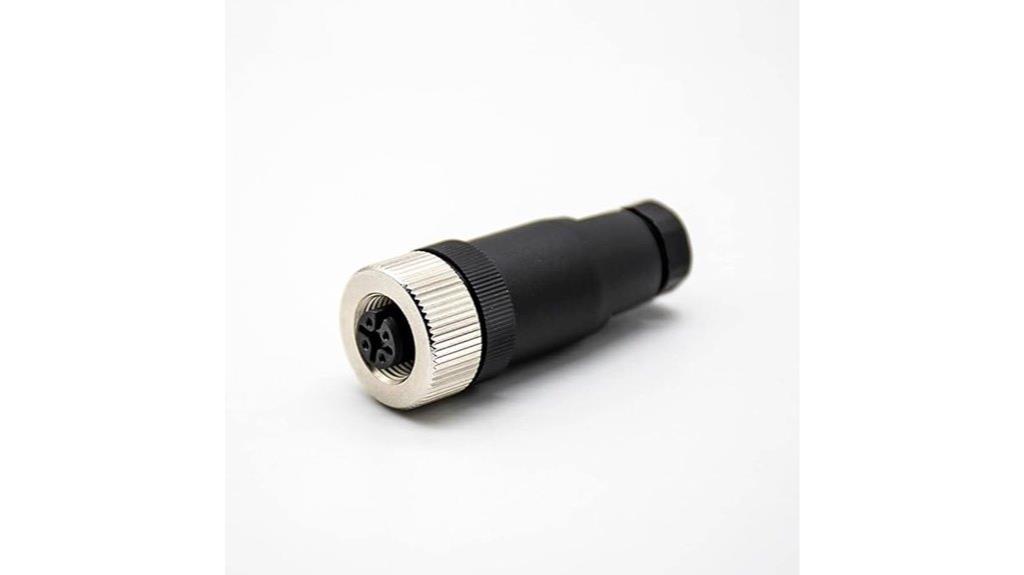

M12 Circular Waterproof Aviation Connector (3 Pin Female A-Code)
If you’re working with the M12 Circular Waterproof Aviation Connector (3 Pin Female A-Code), a field termination kit is the best choice for guaranteeing a secure and reliable connection in demanding environments. This connector features a sturdy 12mm threaded joint with a locking mechanism, making it resistant to vibrations. Its screw-terminal design allows for easy, field-wireable connections, and it’s built for durability in industrial settings. Perfect for sensors, cameras, or automation, this non-shielded connector offers quick connect/disconnect capabilities. Using a field termination kit assures your connection remains secure, even in tough conditions, giving you peace of mind during installation and operation.
Best For: professionals and technicians working with industrial sensors, cameras, or automation systems who need a durable, waterproof, and secure connection in demanding environments.
Pros:
- Easy to install with screw-terminal, field wireable design
- Resistant to vibrations due to anti-vibration locking mechanism
- Reliable waterproof and durable construction suitable for industrial use
Cons:
- Non-shielded design may not prevent electromagnetic interference in some applications
- Requires a field termination kit for proper installation, which may add extra steps
- Limited to 3-pin connections, potentially restricting versatility in complex systems
M12 D-Code 4Pin Shielded Field Termination Connectors For Cable Assembly
The M12 D-Code 4Pin Shielded Field Termination Connectors are ideal for industrial automation professionals seeking reliable, quick, and secure cable connections in challenging environments. These connectors feature a shielded design that protects against EMI and RFI, ensuring clear signal transmission. Their compact and rugged construction makes them suitable for harsh conditions, while the field termination capability allows for fast, on-site installation without special tools. Compatible with various cables and wires, these connectors provide a dependable solution for industrial applications. Manufactured by Keisnoaja, they offer a balanced combination of durability, performance, and ease of use for demanding automation setups.
Best For: industrial automation professionals seeking quick, reliable, and secure cable connections in challenging environments.
Pros:
- Shielded design effectively protects against EMI and RFI, ensuring clear signal transmission
- Field termination capability allows for fast, on-site installation without special tools
- Rugged construction and compact size suitable for harsh industrial conditions
Cons:
- Limited to 4-pin configurations, which may not suit all applications
- Compatibility depends on matching cable specifications; some cables may require adapters
- May require proper handling and training to ensure secure field termination

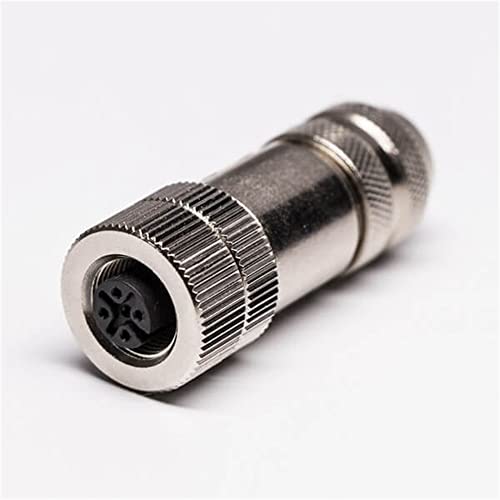

Profibus M12 Field Wireable Connector Assembly Cable Plug
For professionals seeking reliable, easy-to-install connections in industrial environments, the Profibus M12 Field Wireable Connector Assembly Cable Plug offers a standout solution. Its straight, 4-pin female A-Code design with shielded construction guarantees stable, secure connections. The field wireability feature allows quick, flexible installation, while the screw-joint locking and anti-vibration design provide added security. With waterproof O-ring seals and durable construction, it performs reliably across various conditions. Suitable for sensors, cameras, electric bikes, and factory automation, this connector combines simplicity with robustness, making it ideal for demanding industrial applications where dependable signal transmission is critical.
Best For: professionals and technicians seeking reliable, easy-to-install connectors for industrial automation, sensors, cameras, and electric bikes in demanding environments.
Pros:
- Field wireable design allows for quick and flexible installation
- Secure screw-joint locking with anti-vibration features enhances connection stability
- Waterproof O-ring seals ensure reliable performance in various conditions
Cons:
- Some users may require clearer assembly instructions or instructional videos
- Slightly higher weight (1.76 ounces) may be a consideration in tight spaces
- Limited detailed technical specifications may require additional product support for complex applications
2 Pcs M12 Connector 5 pin Male A-Code Industrial Sensor Plug
Designed for industrial automation professionals, the Pcs M12 Connector 5 pin Male A-Code Sensor Plug offers a reliable, easy-to-install solution for connecting sensors and field devices. Its IP67 waterproof rating guarantees durability in harsh environments, and the field-installable screw termination makes setup straightforward. Made from high-quality brass with gold-plated contacts, it guarantees dependable data and signal transmission. The 12mm threaded locking mechanism with anti-vibration features ensures a stable, secure connection. With a straight design and versatile mounting options, this connector simplifies maintenance, reduces downtime, and supports seamless integration of sensors, proximity switches, and control devices in demanding industrial settings.
Best For: industrial automation professionals seeking reliable, quick-installation connectors for sensors and field devices in harsh environments.
Pros:
- IP67 waterproof rating ensures durability against dust and water ingress
- Field-installable screw termination allows for easy, tool-free setup
- Made from high-quality brass with gold-plated contacts for dependable signal transmission
Cons:
- Straight design may limit flexibility in tight or complex installations
- Nickel-plated coupling nut could be prone to scratching over time
- Not shielded, which might affect performance in high-interference environments
2PCS M12 5 Pin Female A-Code Screw Termination Connector
If you need a reliable, easy-to-install connector for industrial automation, the PCS M12 5 Pin Female A-Code Screw Termination Connector is an excellent choice. It’s designed for quick field wiring with a screw joint and an anti-vibration locking mechanism, ensuring secure connections even in demanding environments. Compatible with 22AWG cables, it offers straightforward installation and reliable performance. Manufactured by an OEM factory, it guarantees high quality at a better price. Whether for sensors, actuators, or automation systems, this connector provides durability, easy connection/disconnection, and peace of mind for your industrial applications.
Best For: industrial automation professionals, sensor and actuator installers, and maintenance technicians seeking reliable, easy-to-install connection solutions.
Pros:
- Field installable with screw termination for simple wiring
- Secure, anti-vibration locking mechanism ensures stable connections
- Compatible with 22AWG cables for versatile applications
Cons:
- Not suitable for shielded cable connections
- Limited to 5-pin configurations, may not fit all systems
- Requires manual screw tightening, which may increase installation time
5PCS M12 Field Wireable Connector 5 Pin Female A-Code
The PCS M12 Field Wireable Connector 5 Pin Female A-Code stands out for its screw-joint and thread locking mechanism, making it ideal for applications requiring a secure, vibration-resistant connection. Its 12mm thread guarantees a firm, reliable fit, while the anti-vibration locking design prevents accidental disconnection. Compatible with 22AWG cables, it offers easy, quick connect and disconnect capabilities, simplifying installation and maintenance. This straight, unshielded connector is perfect for miniature sensors, industrial cameras, and automation tasks. As a trusted supplier, I can confirm its high quality and user-friendly design, making it a dependable choice for field wiring needs.
Best For: professionals and hobbyists needing a secure, vibration-resistant connection for miniature sensors, industrial cameras, and automation systems.
Pros:
- Easy quick connect/disconnect design simplifies installation and maintenance
- Secure screw-joint and thread locking mechanism for vibration resistance
- Compatible with 22AWG cables and suitable for various industrial applications
Cons:
- Non-shielded design may not suit applications requiring electromagnetic interference protection
- Straight connector may limit flexibility in tight or complex wiring setups
- Limited to 5 pins, which might not suffice for more complex wiring needs
10pcs M12 A Code 8 Pin Male Field Wireable Cable Plug
For professionals seeking reliable field wiring solutions, the pcs M12 A Code 8 Pin Male Field Wireable Cable Plug stands out with its screw termination and shielded design. This assembly offers easy, secure wiring thanks to its screw-joint connection with thread locking and anti-vibration features. Its straight design simplifies installation, while the shielded construction protects against electromagnetic interference. Suitable for various industrial applications, it ensures stable, dependable connections in demanding environments. Packaged in a set of 10, these plugs are sourced directly from OEM factories, guaranteeing quality and cost-effectiveness. They’re ideal for quick, reliable field wiring in automation and control systems.
Best For: professionals and technicians in industrial automation and control systems seeking reliable, easy-to-install field wiring connectors.
Pros:
- Easy screw-joint connection with secure thread locking and anti-vibration features for stable installation
- Shielded design provides effective electromagnetic interference protection
- Straight design simplifies installation and maintenance in various wiring setups
Cons:
- Only compatible with M12 A Code 8-pin configurations, limiting versatility for other connectors
- May require specific tools for precise screw termination and assembly
- Package of 10 may be more than needed for small-scale projects, potentially leading to excess inventory
10Pcs M12 8-Pin Aviation Connector Female, Industrial A Coding Field Assembly Plug 12mm IP67 Waterproof
Designed for professionals working in demanding industrial environments, the Pcs M12 8-Pin Aviation Connector Female with IP67 waterproofing offers quick, tool-free field assembly thanks to its screw connection. Its 12mm size and circular socket design make it ideal for tight spaces and rugged conditions. Made from durable PA66 plastic, it withstands extreme temperatures, corrosion, and dust ingress, ensuring long-lasting reliability. The 90° right-angle design simplifies wiring and enhances durability by reducing bending stress. Perfect for industrial automation, sensors, encoders, and CCTV, this connector provides a secure, waterproof connection that holds up under harsh environments.
Best For: professionals in industrial automation, data communication, and harsh environment applications seeking reliable, waterproof connectors for tight spaces and rugged conditions.
Pros:
- Easy, tool-free field assembly with screw connection for quick installation and maintenance
- Durable PA66 plastic shell with high resistance to temperature, corrosion, and wear
- 90° right-angle design reduces bending stress and facilitates neat wiring in confined spaces
Cons:
- May require specific tools or skills for initial assembly or disassembly
- Limited to 8-pin configurations, which might not suit all connection needs
- The circular socket design might be less suitable for applications requiring flat or panel-mounted connectors
5PCS M12 5 Pin Male A-Code Field Installable Screw Termination
If you’re working with industrial sensors, cameras, or electric bicycles, the PCS M12 5 Pin Male A-Code Field Installable Screw Termination is an ideal choice. It features a waterproof, unshielded, angled design with a screw-joint that guarantees a secure connection. Compatible with 22AWG 0.34mm² cables, it’s easy to install with quick connect/disconnect capabilities. The thread locking mechanism prevents loosening from vibrations, making it perfect for demanding environments. Its simple operation suits various applications, including factory automation and logistics. As a trusted wholesaler, I stand behind its high quality, offering a 30-day refund if needed.
Best For: industrial automation professionals, sensor installers, and technicians seeking a reliable, waterproof connector for miniature sensors, cameras, or electric bicycles.
Pros:
- Easy field installation with quick connect/disconnect feature
- Waterproof and corrosion-resistant design suitable for harsh environments
- Secure, anti-vibration screw joint ensures reliable connections
Cons:
- Compatible only with 22AWG 0.34mm² cables, limiting flexibility for other wire sizes
- Angled design may require additional space or specific mounting considerations
- May require tools for installation and disconnection, reducing quickness in some scenarios
10pcs M12 5 Pin Female A-Code Field Installable Screw Termination Unshield for 22AWG 0.34mm² Cable
The pcs M12 5 Pin Female A-Code Field Installable Screw Termination Unshield connector is an ideal choice for professionals seeking quick and reliable connections in industrial settings. Its screw-joint design guarantees a secure, vibration-resistant connection, even in demanding environments. The waterproof, unshielded construction makes it suitable for outdoor or harsh conditions, while the angled design facilitates easy access in tight spaces. Compatible with 22AWG 0.34mm² cable, it’s simple to install without special tools. With high-quality OEM build, this connector offers durability and cost-effective performance, making it a trusted solution for industrial automation, machinery, and sensor applications.
Best For: professionals and technicians seeking durable, quick-connect wiring solutions for industrial automation, machinery, and sensor applications in challenging environments.
Pros:
- Easy to install with field installable screw termination design
- Waterproof and unshielded construction ideal for outdoor and harsh conditions
- Secure, vibration-resistant screw-joint for reliable connections
Cons:
- Limited to 22AWG 0.34mm² cable, not suitable for larger gauge wires
- Angled design may be difficult to access in extremely tight spaces
- May require specific tools for installation and maintenance
M12 Field Wireable Connector (4-Pin Female Straight)
For professionals who need quick and reliable on-site wiring, the M12 Field Wireable Connector (4-Pin Female Straight) is an excellent option. Its D-coded design guarantees correct pin alignment, preventing mismating, while the screw joint allows for easy, secure attachment to cables without special tools. The shielded construction offers protection against EMI and RFI, maintaining signal integrity in harsh environments. Made from durable metal, this connector guarantees long-lasting performance. Whether you’re installing in industrial settings or field repairs, its straightforward wiring process and robust build make it a dependable choice for ensuring reliable connections quickly and efficiently.
Best For: professionals and technicians seeking quick, reliable on-site wiring solutions in industrial or harsh environments.
Pros:
- Field wireable design allows for easy installation without special tools
- D-coded ensures correct pin alignment, preventing mismating
- Shielded construction provides EMI and RFI protection for signal integrity
Cons:
- Limited to 4-pin configurations, which may not suit more complex wiring needs
- Metal construction may require careful handling to avoid damage during installation
- Slightly higher cost compared to simpler connectors without shielding
BCC06Z9 Connector, M12 Female, 4 Wire, Field, Screw
The BCC06Z9 connector stands out as an ideal choice for field applications requiring reliable and straightforward connector termination. Its M12 female, straight design with four wires makes it versatile for various wiring needs. The screw contact type ensures secure, solid connections that resist loosening over time. Weighing just 0.33 pounds and compact at 1 x 1 x 3 inches, it’s easy to handle and install in tight spaces. Being a used but like-new component, it offers dependable performance without the cost of new parts. Overall, the BCC06Z9 is a practical, durable option for field wiring where reliability is critical.
Best For: field technicians and engineers seeking a reliable, easy-to-install M12 female connector for industrial wiring applications.
Pros:
- Secure screw contact ensures strong, durable connections
- Compact and lightweight design facilitates installation in tight spaces
- Used but like-new condition offers cost-effective, dependable performance
Cons:
- Limited to 4-wire configurations, not suitable for more complex wiring needs
- Used condition may have minor wear, potentially affecting longevity
- Straight shape may not fit applications requiring angled connectors
Factors to Consider When Choosing Field Termination Kit for M12 Connectors
When selecting a field termination kit for M12 connectors, I consider compatibility with different M12 types to guarantee a proper fit. I also focus on ease of installation and how well the kit withstands environmental conditions, like weatherproofing and durability. Additionally, I evaluate wiring options, size, and accessibility to make sure the kit suits my specific application needs.
Compatibility With M12 Types
Are you selecting a field termination kit for your M12 connector? It’s vital to confirm the kit supports your specific connector type, whether A, B, D, or A-Code, to meet your application needs. Confirm that the kit matches the number of pins in your connector—4, 5, 8, or more—to guarantee proper fit and functionality. Check that the design, whether straight or angled, aligns with your physical setup for easy installation. Also, verify compatibility with the connector’s shielding type—shielded or unshielded—to maintain electromagnetic interference protection. Finally, review the kit’s size and thread specifications, like the 12mm thread joint, to ensure a secure, reliable connection. Compatibility is vital for ideal performance and durability.
Ease of Installation
Choosing a field termination kit that simplifies installation can save you time and reduce errors on-site. Look for kits with tools and components designed for quick, straightforward wiring—no specialized equipment needed. The connector’s design, such as screw-joint or clamp mechanisms, plays a big role in ease of installation, making assembly smoother. Clear, step-by-step instructions or color-coded wiring guides help ensure accuracy and speed up the process. Compatibility with common cable sizes like 22AWG or 24AWG simplifies the setup, minimizing the need for additional adjustments. Additionally, ergonomic, tool-free connectors allow for faster connections and lessen the chance of wiring mistakes. Overall, choosing a kit with these features makes installation more efficient and less error-prone, saving you time and effort.
Durability and Weatherproofing
Durability and weatherproofing are crucial factors to take into account when selecting a field termination kit for M12 connectors, especially in challenging industrial environments. A robust kit should be made from high-quality materials like stainless steel or tough plastics that resist mechanical stress and corrosion. Weatherproofing features such as sealing gaskets, O-rings, or waterproof enclosures are essential to protect connections from moisture, dust, and contaminants. The design must also withstand UV exposure, temperature swings, and harsh outdoor conditions to ensure long-term performance. Proper sealing and rugged construction help extend the lifespan of the connector, reducing maintenance and failure risks. Certifications like IP67 or IP68 are key indicators of a kit’s reliability in providing both durability and weatherproofing in demanding field applications.
Wiring and Termination Options
When selecting a field termination kit for M12 connectors, wiring and termination options play a significant role in ensuring reliable and efficient connections. I look for kits offering screw, crimp, or hybrid options, as each suits different wiring preferences. Screw terminations are simple and tool-assisted, making them easy to install directly onto the connector contacts. Crimp options, on the other hand, involve attaching wires to metal terminals before insertion, providing a secure, vibration-resistant connection—ideal for demanding environments. Some kits include pre-routed or flexible cables, simplifying wiring in tight or complex spaces. Compatibility with wire gauges like 22 or 24 AWG is essential, ensuring proper fit and secure termination. Choosing the right option depends on your specific application and installation environment.
Size and Port Accessibility
Ensuring the field termination kit matches the size and pin configuration of your M12 connector is essential for a secure and reliable connection. Whether you’re working with 4-pin, 5-pin, or 8-pin models, compatibility is key to proper wiring. Additionally, check that the kit offers enough space and accessible ports for tools and cables, especially in tight or confined environments. An ergonomic design, such as angled or straight connectors, can improve access and ease installation, ensuring all terminals are reachable. It’s also important to contemplate the size of the termination area to prevent overcrowding, which can compromise sealing, strain relief, and future maintenance. Finally, verify that the port design allows for straightforward assembly and disassembly, reducing hassle and ensuring long-term reliability.
Cost and Availability
How much you pay for field termination kits for M12 connectors depends on several factors, including the kit’s size, features, and supplier. Generally, bulk packages offer better value, especially if you need multiple kits. Availability is also vital; supplier stock levels, manufacturing lead times, and global supply chain conditions can impact how quickly you get what you need. Prices often reflect material quality, such as waterproofing, shielding, and compatibility with specific cable gauges. Reputable suppliers tend to have consistent pricing and reliable stock, while niche or specialized kits may be more costly or harder to find. Given current supply chain disruptions, it’s essential to check stock levels and lead times beforehand to guarantee cost-effective, timely procurement of the right kit.
Frequently Asked Questions
What Compatibility Issues Should I Consider With Different M12 Connector Types?
When choosing M12 connector types, I always check compatibility with your existing equipment and cabling standards. Different types, like A, B, or D, have unique pin configurations and coding, so mismatched types can cause connection issues. I also consider the environment—some connectors are better for harsh conditions. Ensuring your termination kit matches your specific connector type and environmental needs helps prevent reliability problems.
How Do Environmental Factors Affect the Choice of Field Termination Kits?
Environmental factors are like a double-edged sword, cutting both ways when choosing field termination kits. I consider humidity, temperature, and exposure to chemicals because they can corrode or degrade connections over time. For outdoor or harsh environments, I opt for kits with robust sealing and protective coatings. These features guarantee durability and reliable performance, even under extreme conditions, safeguarding my investment and maintaining system integrity.
Are There Specific Tools Required for Installing M12 Field Termination Kits?
Yes, there are specific tools you’ll need when installing M12 field termination kits. I recommend using a crimping tool designed for M12 connectors to guarantee secure, reliable contacts. A stripping tool helps prepare wires properly, and a torque wrench can prevent over-tightening. Sometimes, a small screwdriver is necessary for securing screws. Having these tools ready makes the installation smoother, safer, and helps maintain the integrity of your connections.
What Is the Expected Lifespan of a Properly Installed M12 Field Termination?
A properly installed M12 field termination typically lasts between 10 to 20 years, depending on environmental conditions and usage. I’ve found that regular inspections and proper installation markedly extend its lifespan. Ensuring connections are secure, free from corrosion, and protected from moisture helps maintain reliability. When these factors are in check, you can expect your M12 connector to perform consistently over many years, reducing maintenance and downtime.
How Do I Ensure the Waterproof Integrity After Termination?
Think of your M12 connector like a treasure chest—waterproof integrity is the lock that keeps everything safe inside. To guarantee this, I always double-check the sealing gaskets and use high-quality waterproof gel or heat-shrink tubing during installation. Properly tightening connections and testing with a waterproof spray or pressure test helps verify the seal. These steps act like a sturdy lock, keeping moisture out and ensuring reliability.
Conclusion
So, after all this, you’d think choosing the right M12 termination kit was a walk in the park, right? Turns out, it’s more like solving a puzzle—except you’re the one missing a piece. Don’t let the variety fool you; reliability is key, even if it means double-checking those connections. After all, a perfect connection isn’t just a goal—it’s the secret to avoiding those pesky failures we all dread.
