Understanding cable insulation materials like PE, FEP, and PVC helps you choose the right option for your needs. PE offers good moisture resistance and low cost, ideal for outdoor or underground wiring. FEP stands out with its high-temperature tolerance and chemical resistance, perfect for demanding environments. PVC is versatile and affordable but less heat-resistant. Exploring these materials further reveals how their unique properties guarantee safety, durability, and superior performance for different applications.
Key Takeaways
- PE offers excellent moisture resistance, flexibility, and low dielectric constant, ideal for outdoor and underground wiring.
- FEP withstands high temperatures (up to 200°C), providing chemical resistance and durability in extreme environments.
- PVC is a cost-effective, versatile insulation material suitable for household wiring, with good flame resistance but lower temperature tolerance.
- Material choice depends on environmental factors like temperature, chemical exposure, and flexibility needs.
- Understanding each material’s properties ensures optimal insulation performance and safety in specific applications.
When selecting cable insulation materials, understanding their properties is crucial to guarantee safety, durability, and performance. Different materials offer unique characteristics that impact how well they protect the conductors and withstand environmental conditions. Among the most common options are polyethylene (PE), fluorinated ethylene propylene (FEP), and polyvinyl chloride (PVC). Knowing their wire insulation properties helps you choose the right material for your specific application, especially considering factors like temperature resistance, flexibility, and chemical stability.
PE is widely favored for its excellent insulation capabilities and low dielectric constant, making it suitable for high-frequency applications. It’s lightweight, flexible, and resistant to moisture, which helps prevent corrosion and short circuits. When it comes to temperature resistance, PE can typically handle temperatures up to about 80°C for standard grades, with some specialized variants reaching 100°C. Its ability to withstand moderate heat makes it ideal for underground wiring or environments where exposure to moisture is common. However, PE’s relatively limited temperature resistance means it might not perform well in high-heat scenarios, so you should consider this when designing systems that involve elevated temperatures. Polyethylene’s moisture resistance also contributes to its effectiveness in outdoor and underground applications.
PE offers excellent insulation and moisture resistance, suitable for high-frequency and underground wiring applications.

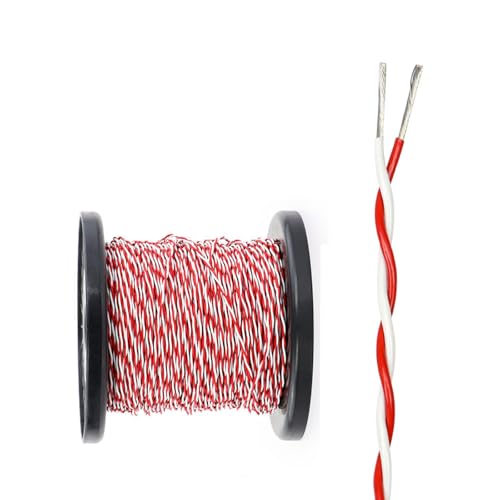

FEP, on the other hand, offers exceptional wire insulation properties, especially in terms of temperature resistance. It can endure temperatures up to 200°C or even higher, making it suitable for demanding environments like aerospace or industrial settings. FEP’s non-stick and chemical-resistant nature also mean it can withstand exposure to harsh chemicals, oils, and solvents without degrading. Its high-temperature tolerance ensures reliable insulation even in extreme conditions, reducing the risk of failure over time. While FEP is more expensive than PE or PVC, its durability in high-temperature environments often justifies the cost if your project requires it.
PVC is perhaps the most versatile and cost-effective insulation material. It provides good flexibility, mechanical strength, and resistance to fire, making it suitable for a broad range of applications. Its wire insulation properties include decent temperature resistance, generally up to 70°C or 85°C in some versions. PVC’s ability to resist flames and its insulating qualities make it a common choice in residential wiring, appliances, and electronic devices. However, PVC can become brittle over time when exposed to UV light or extreme heat, and it releases harmful fumes if it catches fire, which is a concern in certain environments. Its affordability and ease of installation make it a practical choice for many standard applications.
Frequently Asked Questions
How Do Insulation Materials Impact Cable Flexibility?
Insulation materials directly influence your cable’s flexibility versus durability. For example, FEP offers high insulation material flexibility, making your cable more bendable and easier to install in tight spaces. PVC provides moderate flexibility but is more durable, while PE balances flexibility and durability. Your choice depends on whether you prioritize ease of installation or long-term robustness, as insulation material flexibility affects how well your cable withstands bending and movement.
Are There Environmentally Friendly Insulation Options?
You can choose environmentally friendly insulation options like biodegradable materials and cables made from recycled materials. These options reduce environmental impact by decomposing more easily or reusing existing resources. Look for cables labeled as eco-friendly or those that specify using recycled content. Switching to biodegradable insulation or recycled materials helps lower your carbon footprint and promotes sustainability in your projects. Always check product specifications to confirm eco-conscious choices meet your performance needs.
What Is the Typical Lifespan of PE, FEP, and PVC Insulations?
You’ll find that PE insulation typically lasts 10-15 years, while FEP can endure 20-30 years due to its high resistance to insulation degradation. PVC usually has a shorter lifespan, around 10-15 years, affected by environmental conditions. Keep in mind, material recyclability varies; FEP is less recyclable, whereas PE and PVC offer better options. Proper installation and maintenance can extend these lifespans markedly.
How Do Insulation Materials Affect Electrical Performance?
You might think insulation materials only protect cables, but they actually boost electrical performance too. For example, high dielectric strength guarantees efficient energy transfer, while moisture resistance prevents shorts and corrosion. Choosing the right material, like FEP for extreme conditions or PVC for budget-friendly options, directly impacts cable reliability. So, your selection influences overall performance by safeguarding against moisture and maintaining consistent dielectric strength.
Can Insulation Materials Withstand Extreme Temperatures?
You’ll find that insulation materials like PE, FEP, and PVC have varying thermal resistance, so some can withstand extreme temperatures better than others. For example, FEP offers high thermal resistance and excellent chemical compatibility, making it suitable for harsh environments. PVC has lower thermal resistance and may degrade under extreme heat, so you should choose materials based on the temperature range and chemical exposure your project requires.
Conclusion
Think of cable insulation as the shield guarding your signals, each material like a different armor. PE is the flexible guardian, FEP the resilient knight, and PVC the sturdy protector. Choosing the right one is like picking the perfect suit of armor—each has its strength, its purpose. When you understand their symbolism, you’re better equipped to select the right insulator, ensuring your connections remain strong and reliable, like a well-guarded treasure in a vast digital kingdom.
